50INCH Poultry Ventilation Fan/ Pakistan Poultry Farm Ventilation Cooling Fan Price
50INCH Poultry Ventilation Fan/ Pakistan Poultry Farm Ventilation Cooling Fan Price
Regular price
£400.56 GBP
Regular price
£0.00 GBP
Sale price
£400.56 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Product Description

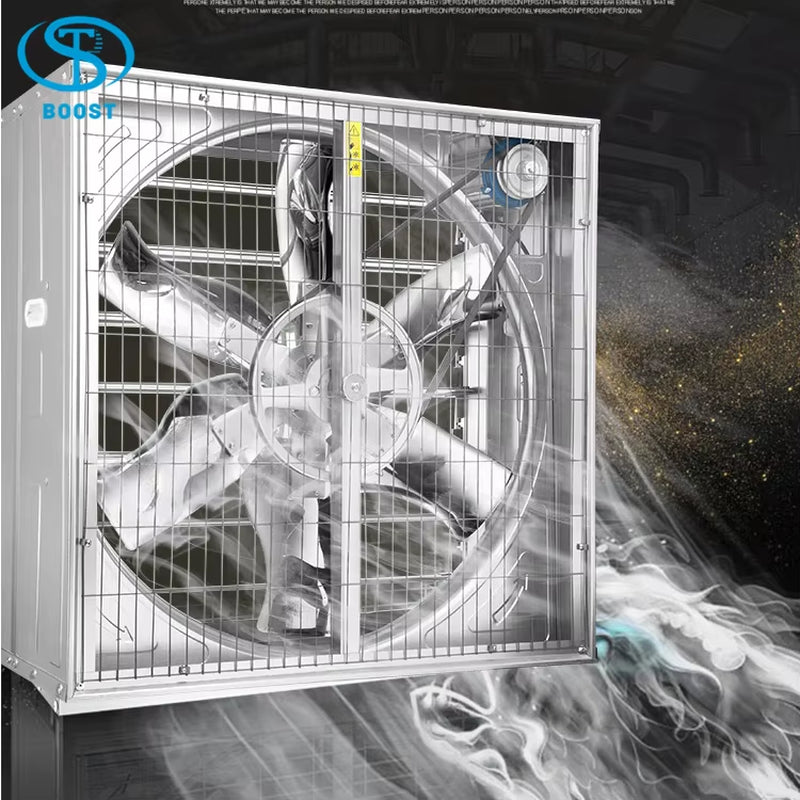

50INCH poultry ventilation fan/ Pakistan poultry farm ventilation cooling fan price
BOOST Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
Model |
Drive |
Blades Diameter(mm) |
Blades Rotational Speed(rpm) |
Motor Rotational Speed
(rpm)
|
Air flow
m³/hr
|
Input power
(W)
|
Noise(db) |
BST300 |
Drive |
200 |
1400 |
1400 |
1000 |
120 |
＜70 |
BST400 |
Drive |
300 |
1400 |
1400 |
2000 |
180 |
＜70 |
BST480 |
Diect |
380 |
1400 |
1400 |
3000 |
180 |
＜70 |
BST600 |
Direct |
500
(20inch)
|
1400 |
1400 |
5700 |
370 |
＜70 |
BST800 |
Belt |
710
(28inch)
|
660 |
1400 |
18000 |
370 |
＜65 |
BST900 |
Belt |
750
(30inch)
|
630 |
1400 |
22000 |
370 |
＜65 |
BST1000 |
Belt |
900
(36inch)
|
610 |
1400 |
25000 |
750 |
＜65 |
BST1100 |
Belt |
1000
(40inch)
|
600 |
1400 |
32500 |
750 |
＜65 |
BST1220 |
Belt |
1100
(44inch)
|
460 |
1400 |
38000 |
750 |
＜64 |
BST1380 |
Belt |
1270
(50inch)
|
458 |
1400 |
44000 |
1100 |
＜64 |
BST1530 |
Belt |
1400
(56inch)
|
325 |
1400 |
55800 |
1500 |
＜64 |
Motor
50INCH poultry ventilation fan/ Pakistan poultry farm ventilation cooling fan price
Brand: Chinese motor and Siemens motor Certificate: CCC
Protection class: IP55 grade
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.

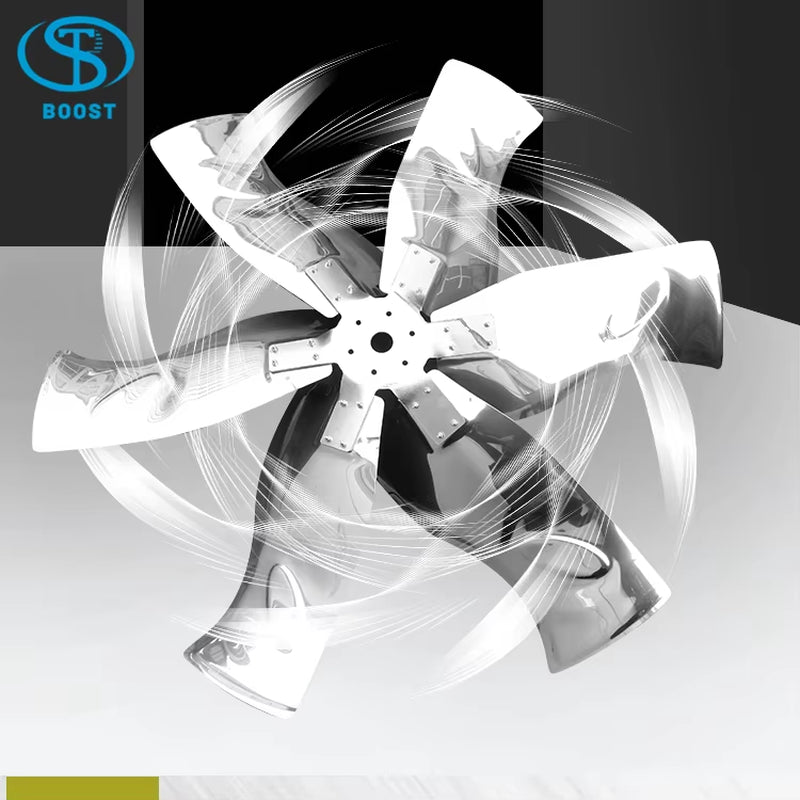

Fan blade which punching formed
50INCH poultry ventilation fan/ Pakistan poultry farm ventilation cooling fan price
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
Italligent Dynamic-Fan balance Tester
50INCH poultry ventilation fan/ Pakistan poultry farm ventilation cooling fan price
50INCH poultry ventilation fan/ Pakistan poultry farm ventilation cooling fan price
Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Opening system-Centrifugal System
50INCH poultry ventilation fan/ Pakistan poultry farm ventilation cooling fan price
1.Material: High quality Nylon PA66
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.
When it is close,the tight sealing can efficiently block light and wind into the poultry house.The fasteners of centrifugal system are copper rivets,wearresisting,no rust,and flexible.Nylon oriented pole is made of stainless steel,ensuring the high strength and reducing frication,rust-resistant.
Fan blade which punching formed
50INCH poultry ventilation fan/ Pakistan poultry farm ventilation cooling fan price

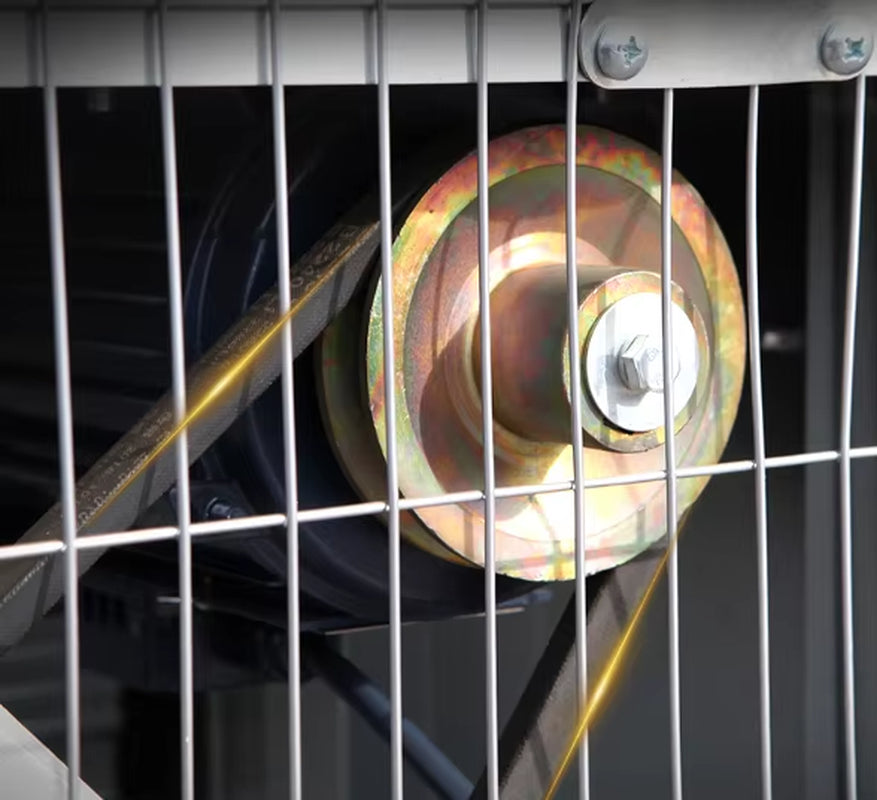

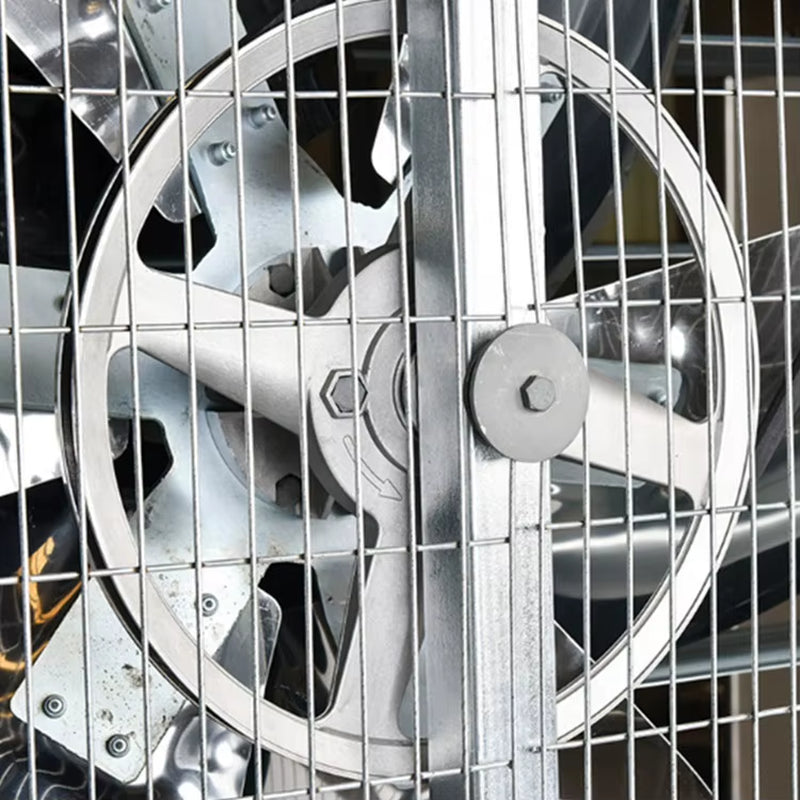

Fan belt pulley and flange are made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to reinforcing rib to increased strength. No broken . Long service life.
The angle of blade hub is designed after double tested which can be fix with blade exactly.
Advantage:
Small wind resistance,Large air flow, attractive and durable.
Belt
50INCH poultry ventilation fan/ Pakistan poultry farm ventilation cooling fan price
We have Chinese belt and Japanese Mitsuboshi brand belt for customer choice. Long service life and no repair
Modified B type belt,so that service life increase 3times than Type A
Frame: Thicken galvanized sheet
50INCH poultry ventilation fan/ Pakistan poultry farm ventilation cooling fan price
We has advanced production technology with automatic equipment. professional production line, NC-based professionalequipment.Auto
punching and bending. Highly-accurated. Materials is made by 275g coating weight galvanized sheet.
punching and bending. Highly-accurated. Materials is made by 275g coating weight galvanized sheet.
Advantage:
High strength,Strong corrosion resistance

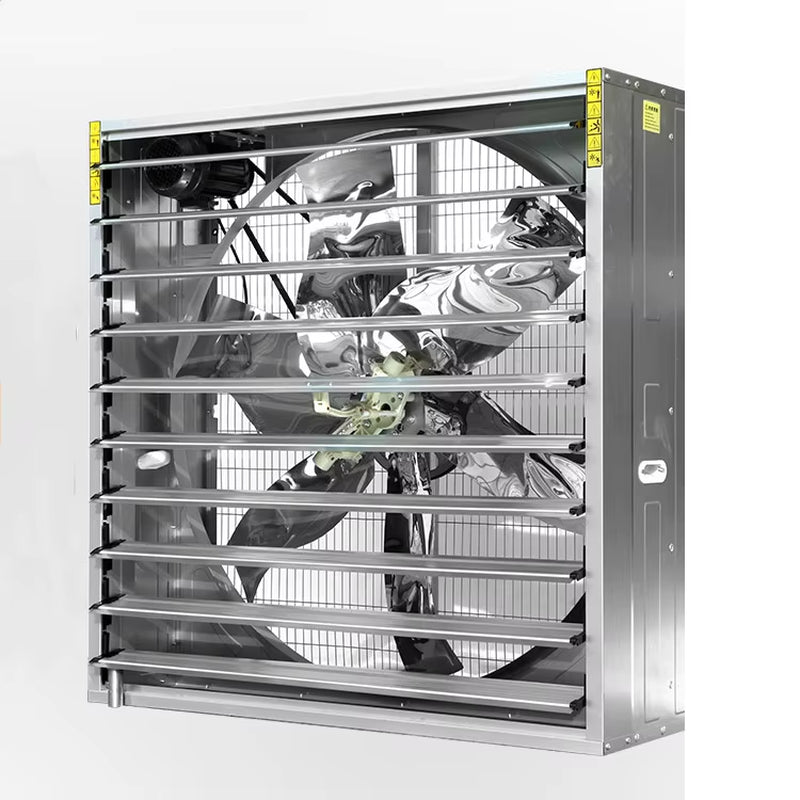

Shutters open/close automatically
50INCH poultry ventilation fan/ Pakistan poultry farm ventilation cooling fan price
No electricity ventilation,Pull ring for assiatence the Heavy Hammer,then Shutters can open and close automatically.
Advantage:
Windproff ,Rainproff
Fan safe net
50INCH poultry ventilation fan/ Pakistan poultry farm ventilation cooling fan price
50INCH poultry ventilation fan/ Pakistan poultry farm ventilation cooling fan price
Fan protection mesh guard is made by hot-dip galvanized wire with electrostafic plastic spraying.It's no easy to get
rusty.Attractive and durable.
rusty.Attractive and durable.
Handle design
More humanized design
Easy to move
Not to be broken
Not to be broken
Detailed Images

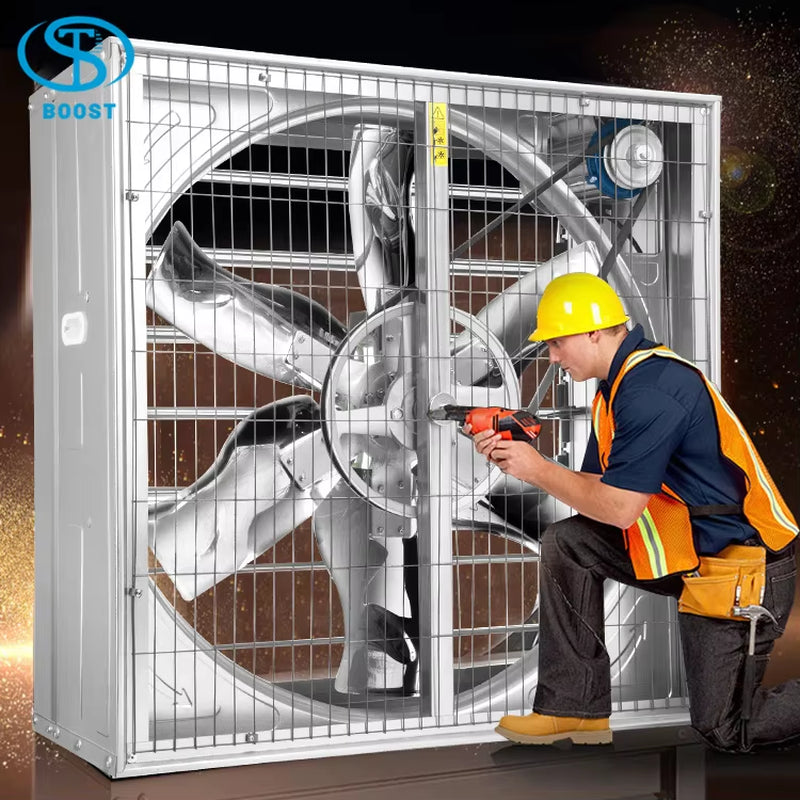

How to install Exhaust Fan
Remarks
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly
2. After fixing the fan, the remaining gap need to be sealed
3. The Expansion screws and Self tapping screw can be used to fix .
3. The Expansion screws and Self tapping screw can be used to fix .
Factory&Workshop
WHY choose BOOST?
BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
Packing&Shipping
After Sales Service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Sample testing support.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* Engineers are available to service machinery overseas.
FAQ
Q:Is your company a manufacture or Trading company?
A:We are professional manufacture of Ventilation equipment,Cooling equipment and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
