AGRO

High Precision GPS Leveling Land Leveler Machine Control System Land Leveling Grader System Agricultural Farm Flat Ground System

£800.23 GBP

~~£0.00 GBP~~ £800.23 GBP

Sale Sold out

Taxes included.

model number Rtkbasestation Ls300

Product Details

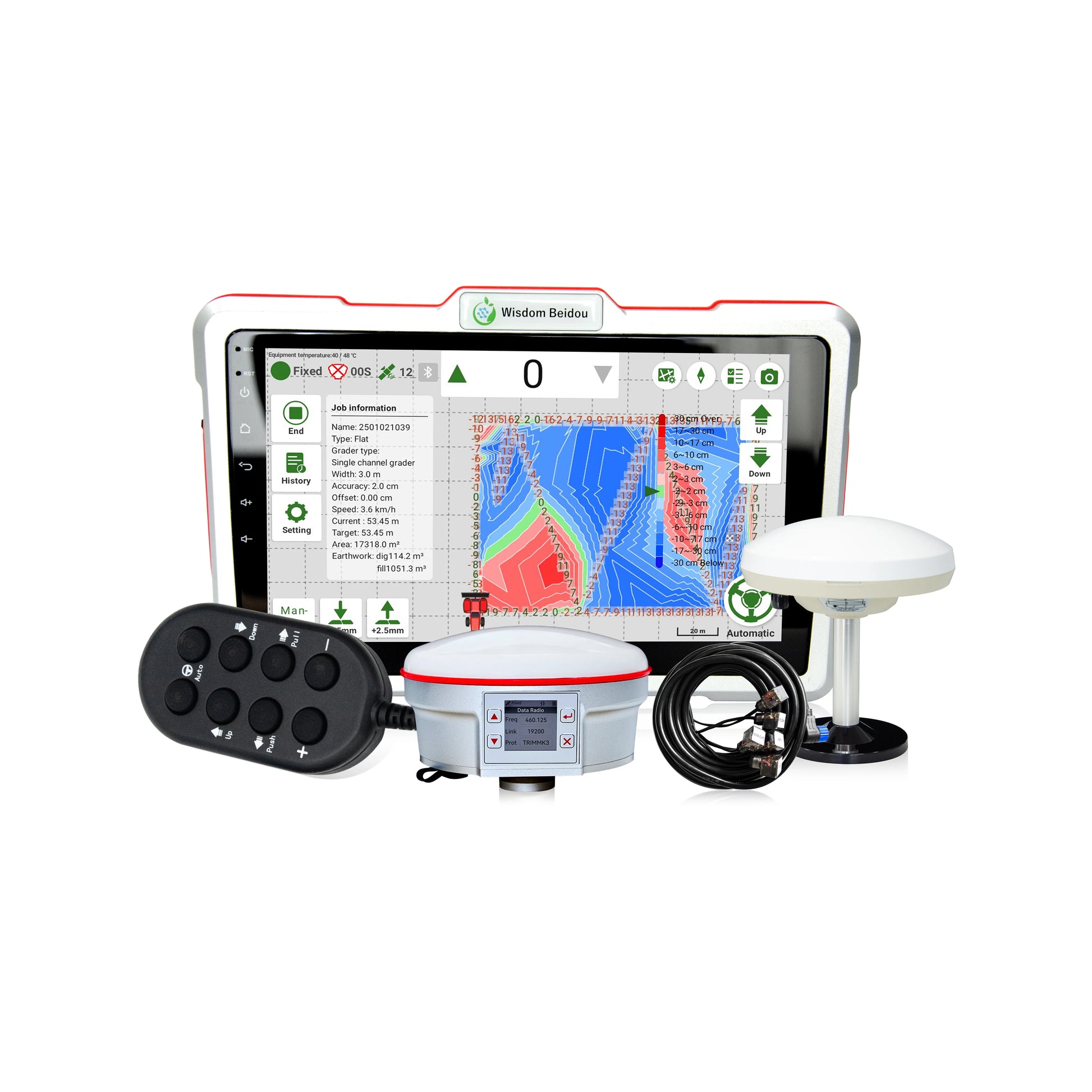

LS300 Land Leveling System

The new generation LS300 satellite land leveling system of Wisdom Beidou perfectly integrates the terminal and controller ,optimizes the product form , effectively reduces the occupancy space of the product , and the overall stability of the system is further improved .
The system supports topographic measurement , topographic map import and export , with optional single-channel or dual-channel, providing a variety of operating modes for different scenarios of operational needs , and is widely used in precision agriculture, water conservancy , roads , airports , and large stadium construction of land leveling .

Intelligent Terminal

*10.1-inch high-definition touch screen, clearly visible in sunlight Internal integrated controller, effectively improving system reliability;

*Built in high-precision positioning board, radio station, and 4G network module;
*IP67 protection level, dust and water proof;

*-40~70 ℃ ultra wide working temperature range, suitable for extreme operating conditions.

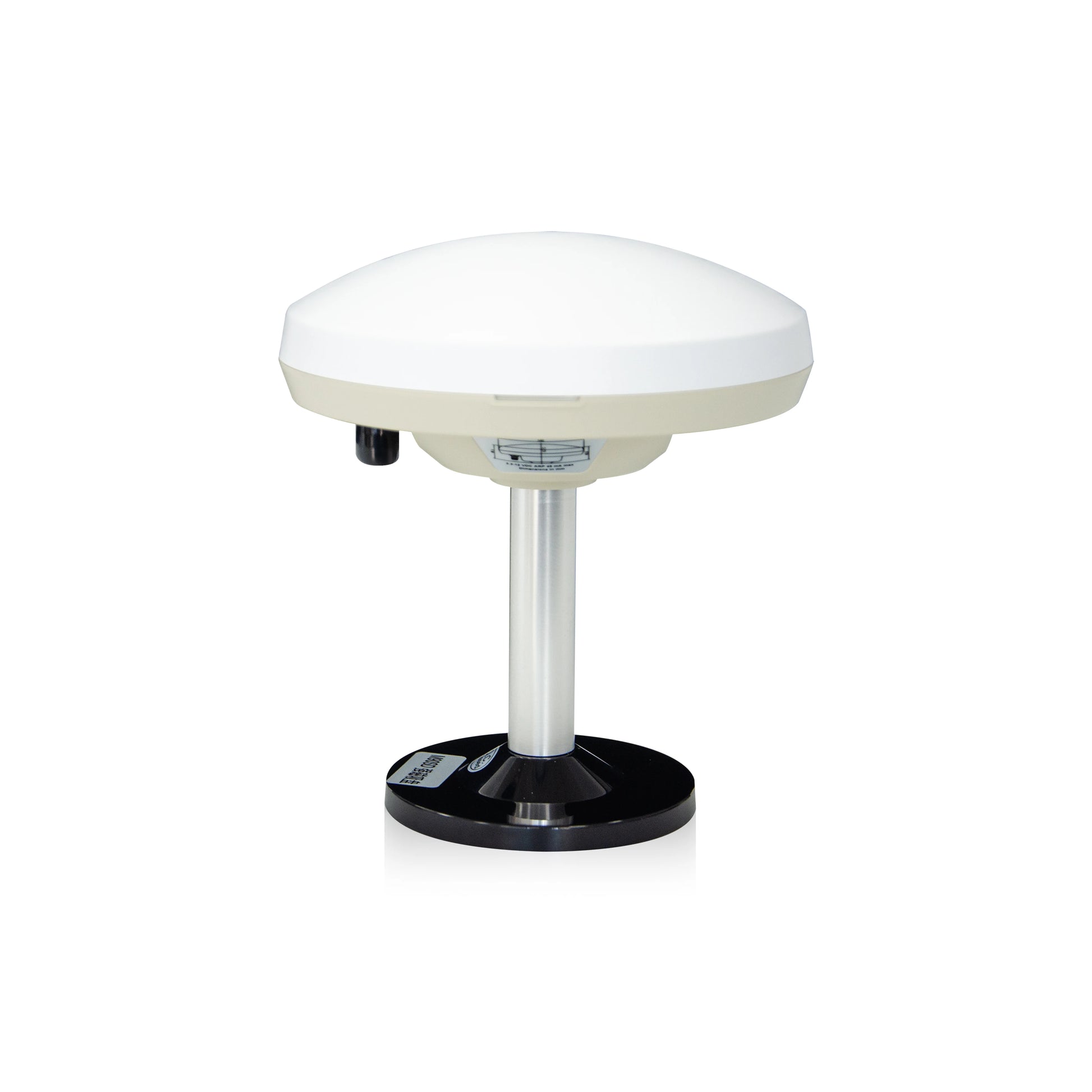

GNSS Antenna

* Supports GPS/BEIDOU/GLONASS/GALILEO full frequency band signals.
Millimeterlevel posttioning accuracy
stable output of GNSS navigation
signals.
High-strength PC shellfor duablity,
IP67 protection level.

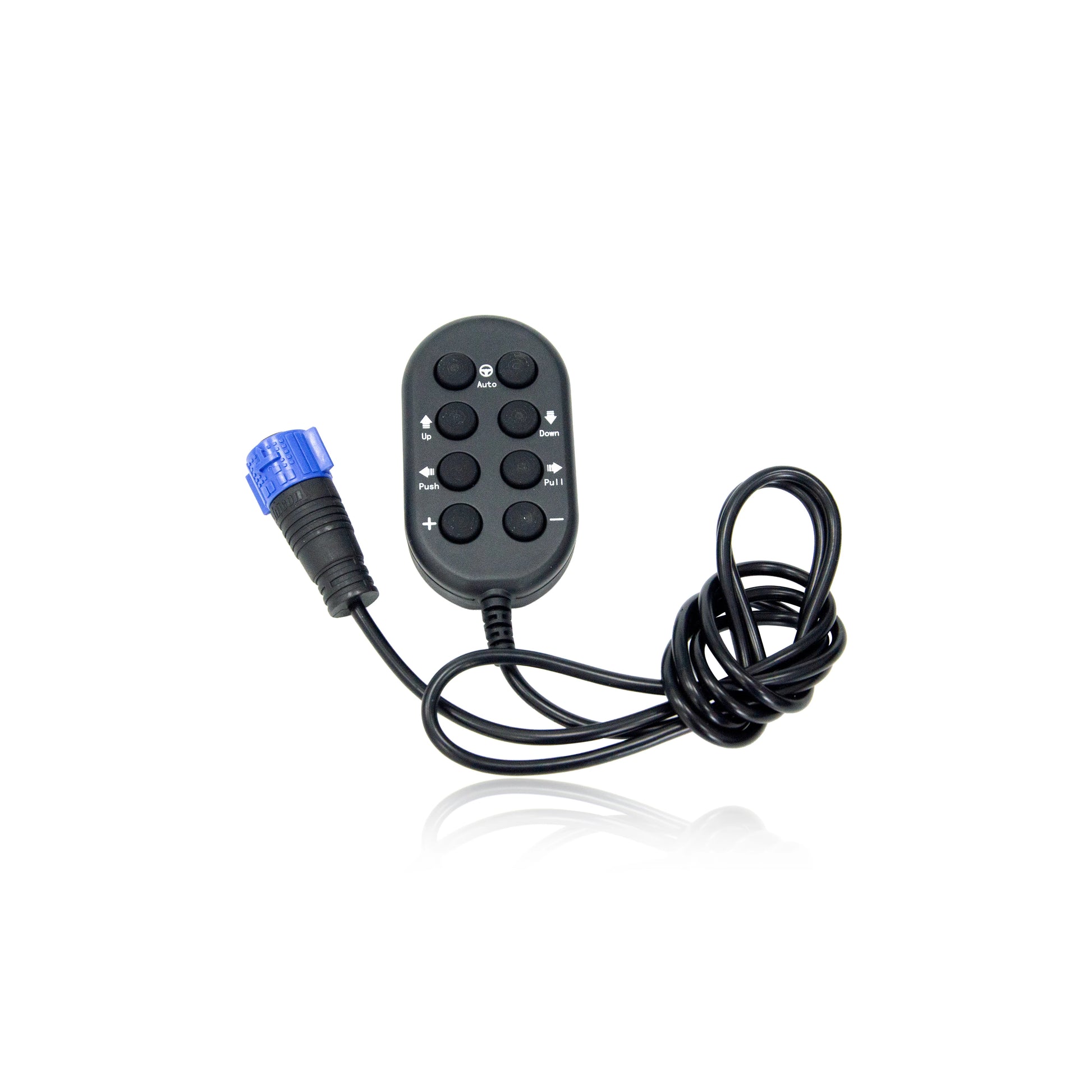

Control Handle

*Multi functional control handle, can be used for single channel or dual channels graders;

*Ergonomic design, comfortable and
durable, user friendly Dust and water proof.

Portable Base Station

Stable signal transmission, effective
transmission distance 3km to 5km,
supports signal amplification.
Ultra-low power consumption,long
endurance. Durable body high-strength PC shell, IP67 protection standard.
Supports transmission protocols
such as HUACE, SOUTH, TRIMTALK,
TRANSEOT, TRIMMARK 3.

Wiring harnesses
*Using high-quality and durable wiring harnesses to ensure long-term reliability.
*The hydraulic valve harness comes with a master control plug, supporting up to 13 plugs, making it more convenient to control the grader.

Easy Installation

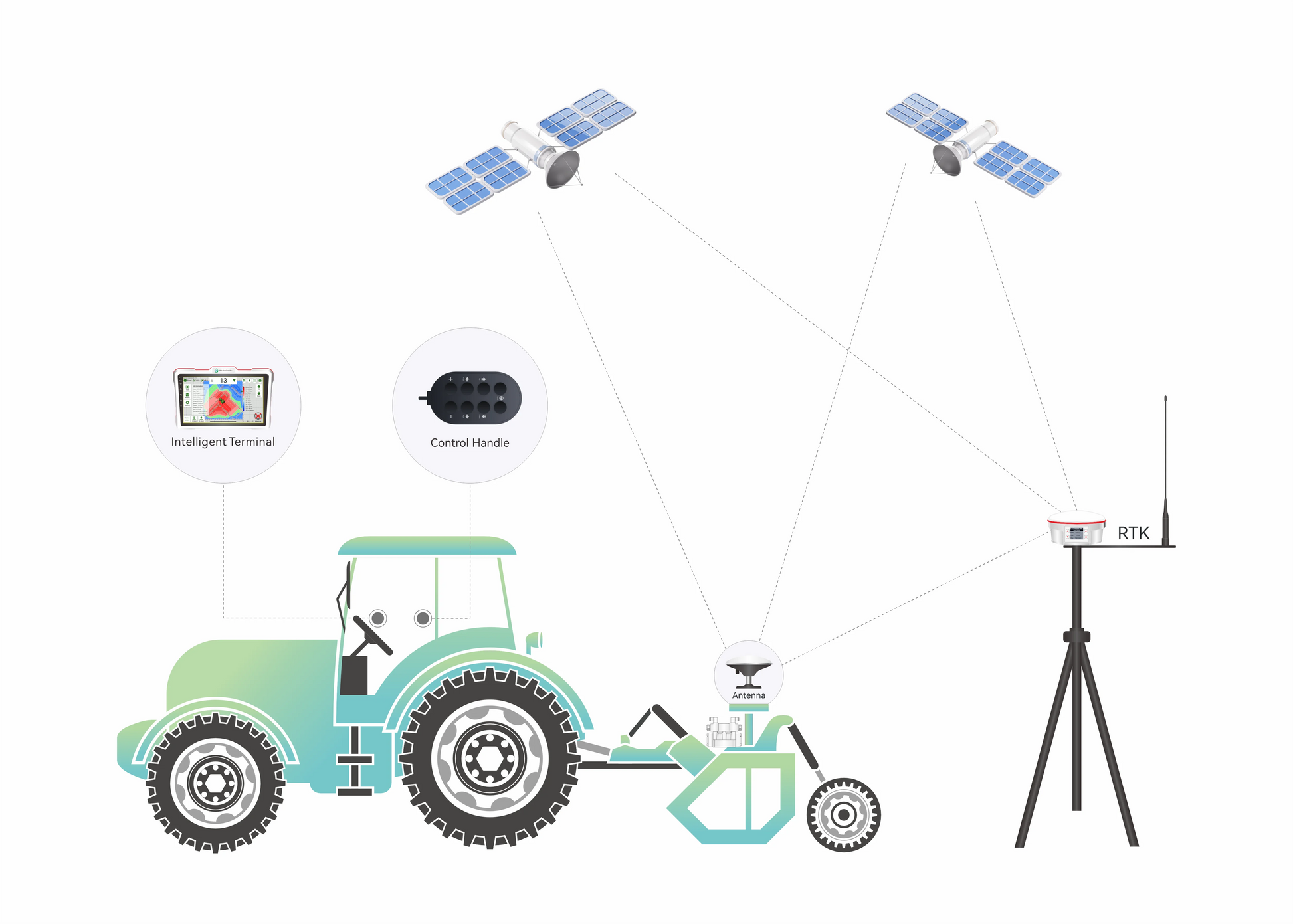

How it works

The satellite leveling system uses satellites and base stations to perform differential positioning on the GNSS antenna installed
on the leveling machine to determine the current position and elevation of the GNSS antenna, and feeds the data back to the
intelligent terminal. The intelligent terminal processes the collected data and sends control signals to the electromagnetic
directional valve installed on the leveling machine, thereby controlling the oil cylinder on the leveling machine to work and
achieve the required elevation of the current position.

Device UI

Product Highlights

Water Saving

Grain Output Increase

Land Saving

Fertilizer Saving

Double bevels

Setting 2 slopes based on 3 measurement points, double bevelrs operation can be used

Bevel

According to the measurement results, only the starting and ending heights of the slope need to be set to complete the single slope operation

Plane Based on the measured average heright, automatically determine the plane heright, and complete the land leveling operation.

Good Signal

Full system, full frequency.
Support CORS, radio and network station.

Radio Base Station

Effective transmission distance 3-5km, support SOUTH、TRIMTALK、TRANSEOT,TT450S、TRIMMK3SATEL

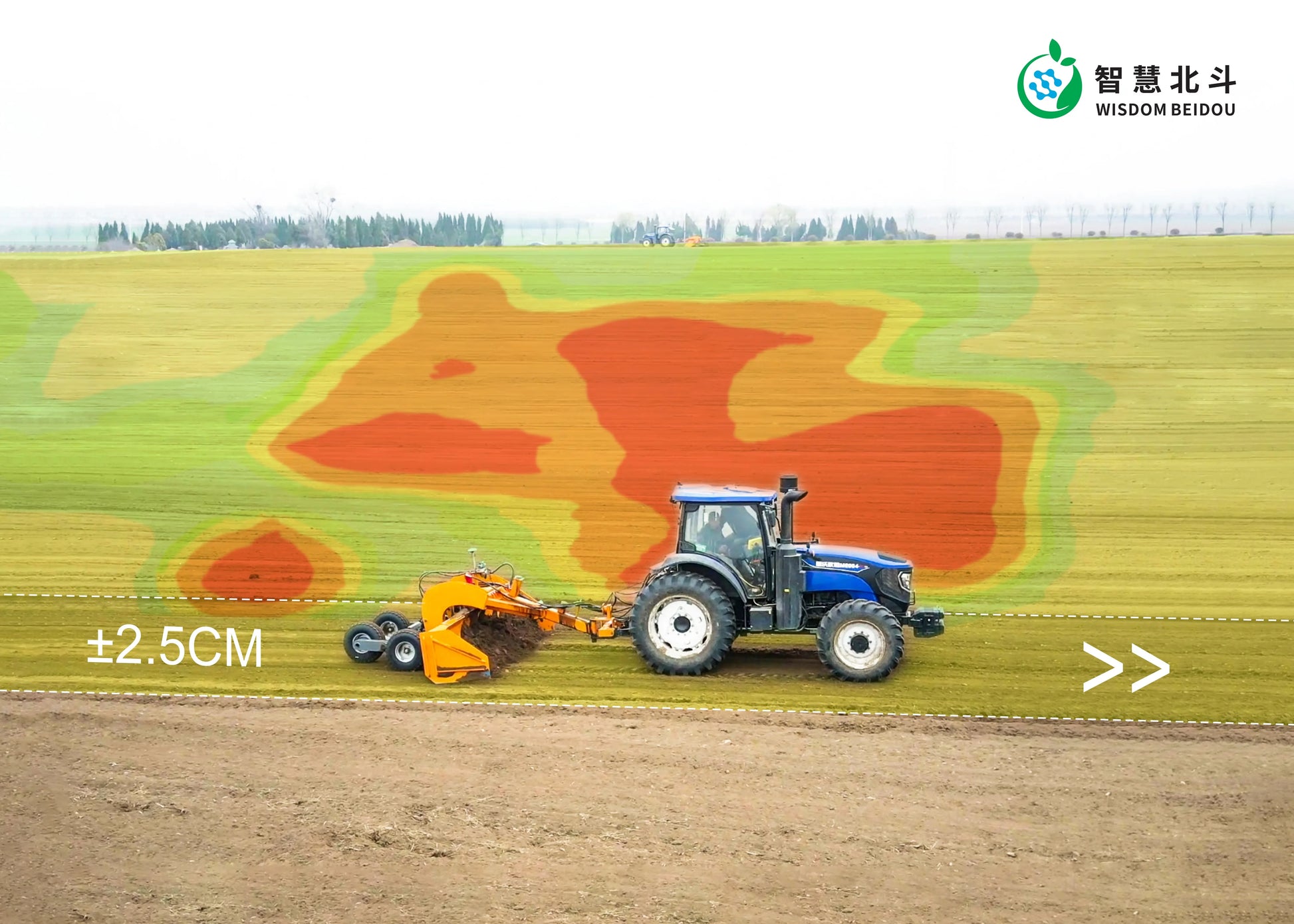

Terrain Visualization

Intuitive elevation differences and terrain heat map for easy operation.

Optional Single or Double Antennas

Can be used on single or dual channel land leveler, as well as scraper and bulldozer.

Highly Integrated

Modular design, screen integrated controller, more stable.

More plugs, more functions

The hydraulic valve harness comes with its own master plug and supports up to 13 plugs.

Auto steering system

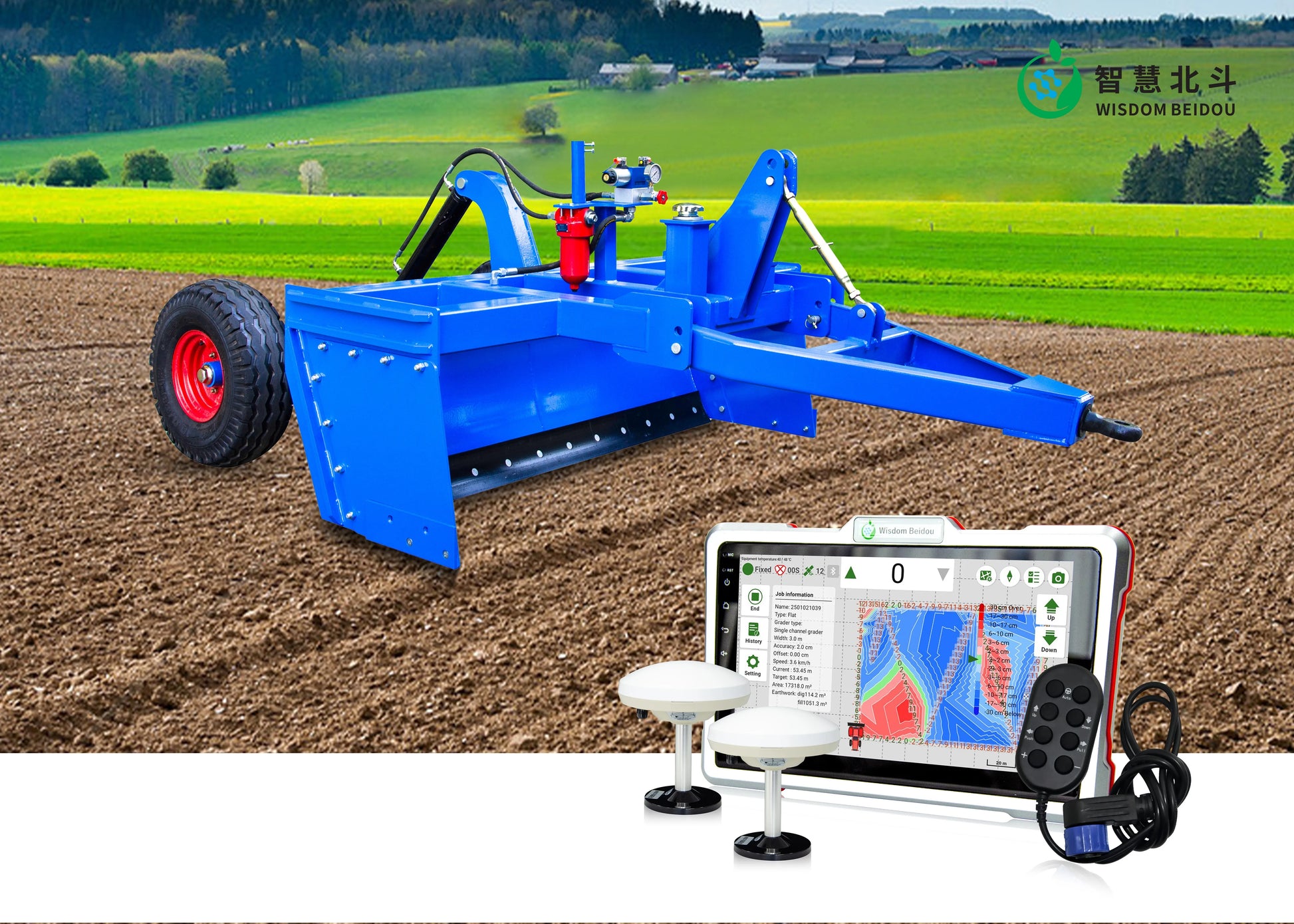

Land leveler
with land leveling system

Scaper
with land leveling system

Company Profile

QINGDAO WISDOM BEIDOU AGRICULTURAL TECHNOLOGY CO., LTD

Founded in 2014, Wisdom Beidou focuses on intelligent agricultural equipment. According to our own R&D advantages and the needs of
market development, our products mainly cover auto steering system for agricultural machinery, land leveling system and land
leveler.

Based on service, with professional and efficient service team, we provide customers with comprehensive and high-quality pre-sale,
after-sale and value-added services.

Installation photos& exhibition

Certification

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. What’s your advantage?
I.10 years of accumulation, rich industry knowledge and experience

II.Stable and reliable quality, good reputation

III.Continuous innovation, promoting product upgrades IV.Professional, efficient and enthusiastic team and service

2.What kind of after-sale service do you offer?
Based on service, with professional and efficient service team, we provide customers with comprehensive and high-quality pre-sale, after-sale and value-added services. We support online and on-site services, helping our dealers to do the training.

3.Do you develop dealers? What are the application conditions for dealers?
In non exclusive agency areas, we welcome the joining of dealers. Please contact us for specific conditions.

4.What is your payment method?
T/T, Western Union, AliExpress, PayPal, credit card, L/C etc.

5.Does your product support customization? Can I put my logo on the product?
Yes. We offer OEM and ODM products. Please contact us for details.

6.What’s the minimum quantity?
The MOQ is one unit and we will help you to sell more.
