JIS NV16 Big Farm Drone Agriculture Sprayer 15L 15 16 Liters Drone Sprayer Agricultural Spraying Agriculture Drone Sprayer

Customization

Supported

Send out Disassembled Parts

Supported

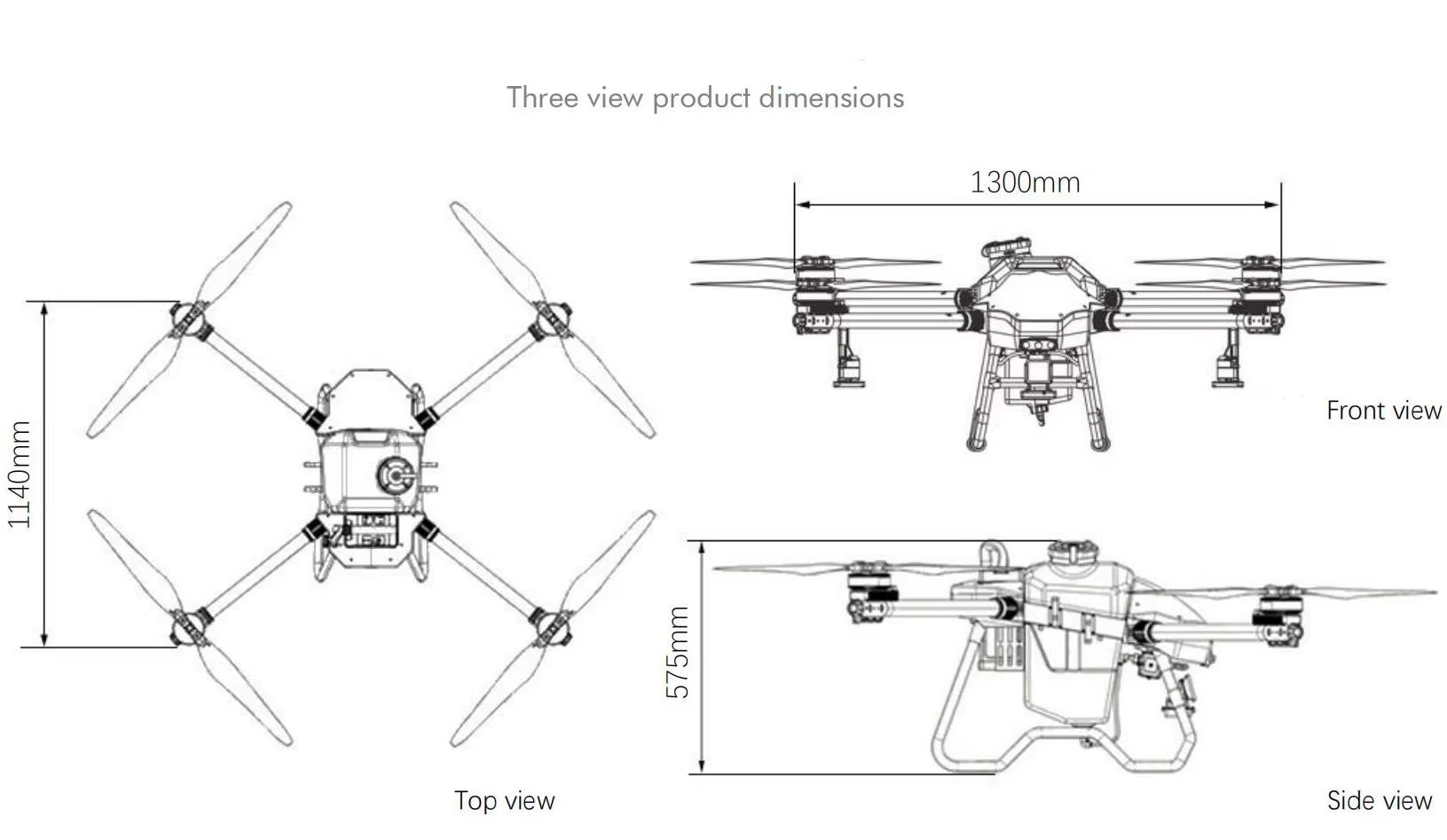

Unfolded Size

114*130*57.5 cm

Folded Size

101*61*57.5 cm

Wheelbase

148cm

Weight

16kg

Take off Weight

38kg

Water Tank Volume

16L

Spraying Flow

4-8 L/min

Effective Spray Width

5~8 m

Flight Speed

5~10m/s

Spraying System

Centrifugal Nozzle

Max. Pumb Pressure

0.8mPa

Charging Time

15-30 min

Operation Power

58.8V 14S 22000mAh

Flight Time

Empty Tank 25 min, Full Tankk 10 min

Flow

8L

Efficiancy

2.47acres/h

Operation Temperature

-10°C~40°C

Storage Mode

The arms folds sideways

Packing Size

106*66*62.5 cm

Packing Weight

18kg

Packing List

NV16 Complete Parts without Batteries/Charger

NV16 frame 机架 (LMJSFN001)*1
8L brushless pumb 8L无刷水泵*1
Flow meter 流量计*1
Spray nozzle and stand 喷头杆*2
Hobbywing X9 Power 好盈X9动力*4
34" propellers 34寸桨叶*4
H12 remote controller H12遥控器*1
Flight control K++飞控*1
