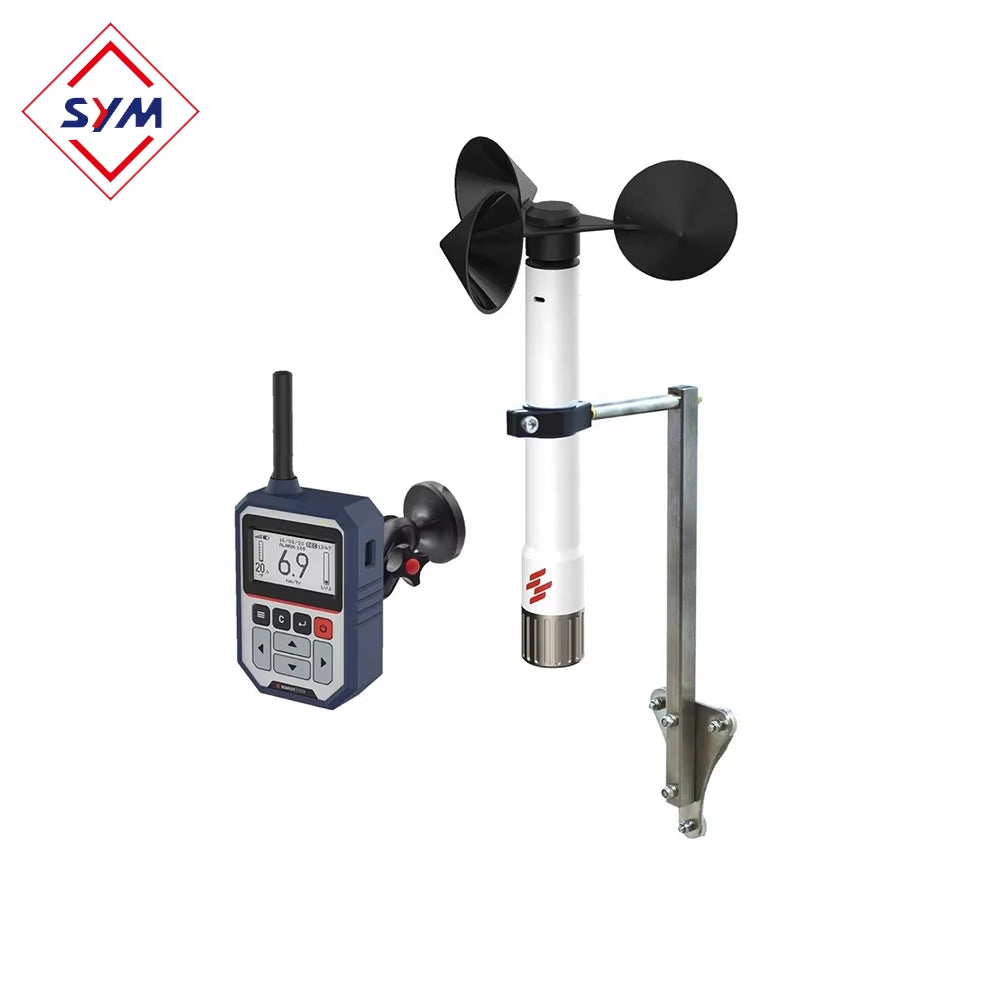

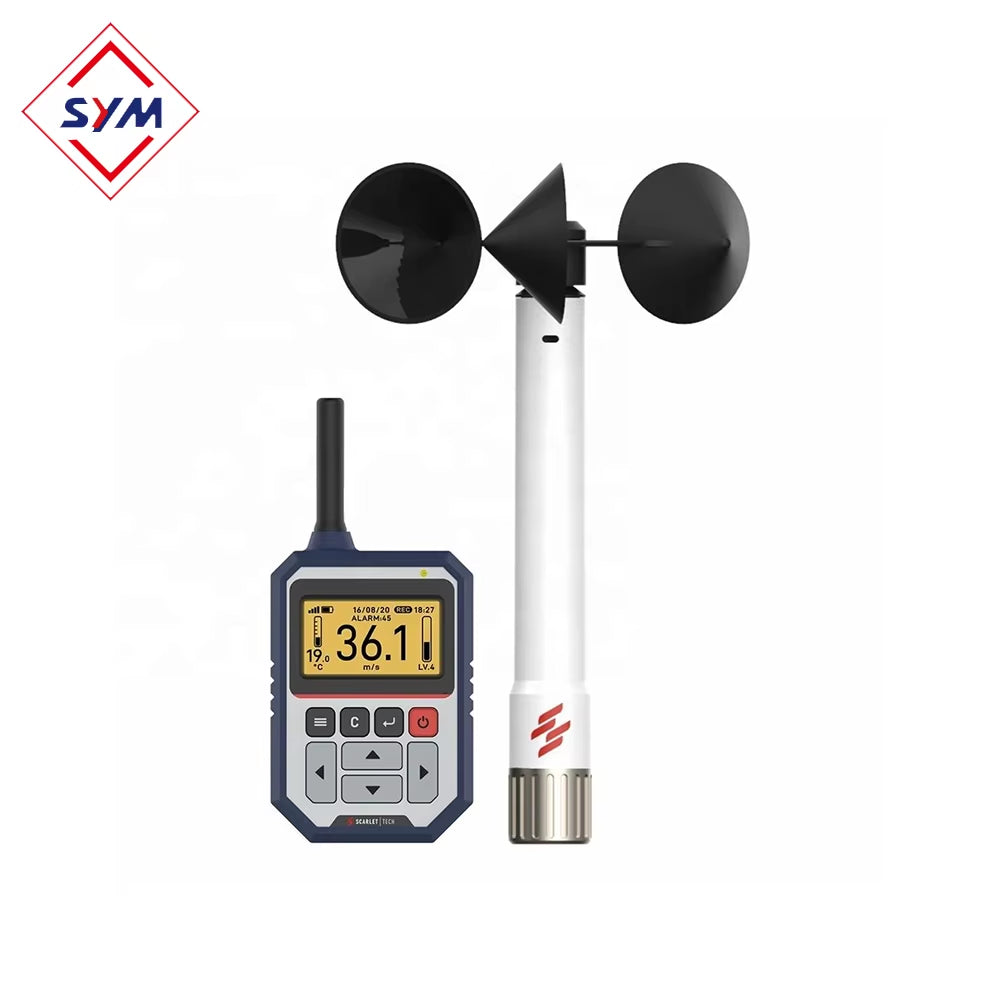

New Model Wireless Anemometer for Tower Crane 500M Long Range
New Model Wireless Anemometer for Tower Crane 500M Long Range
Regular price
£1,000.54 GBP
Regular price
£0.00 GBP
Sale price
£1,000.54 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Product Overview
Cranes operation in windy conditions could create a potentially dangerous situation. The wind forces exerted on
both the crane and the load can affect the strength and stability of the cranes. In order to ensure safety during
lifting operations, it is very important for the members in the lifting team to know the wind speed and resistance.
The challenge to know the wind speed is the connection between sensor and display. Traditional cabled-anemom
eter wouldn’t work well with the staggering heights among cranes and complex working condition. WR-3 Plus
Wireless Anemometer offers a trusted and stable wind measurement solution.
both the crane and the load can affect the strength and stability of the cranes. In order to ensure safety during
lifting operations, it is very important for the members in the lifting team to know the wind speed and resistance.
The challenge to know the wind speed is the connection between sensor and display. Traditional cabled-anemom
eter wouldn’t work well with the staggering heights among cranes and complex working condition. WR-3 Plus
Wireless Anemometer offers a trusted and stable wind measurement solution.
Features
- Max 500m ultra-long wireless transceiver
- Audible & visual wind speed alarm
- Data recording up to 1 year
- Wind speed, temperature, air pressure measurements
- Max 3 years sensor battery life
- IP67 waterproof & impact resistant
- Fast & secure magnetic installation kit
- Audible & visual wind speed alarm
- Data recording up to 1 year
- Wind speed, temperature, air pressure measurements
- Max 3 years sensor battery life
- IP67 waterproof & impact resistant
- Fast & secure magnetic installation kit
Application Areas
- Cranes & Construction
- Marine, Ports& Offshore
- Film Production & Outdoor Entertainment
- Scaffolding & Temporary Structure
- Rigging & Communications Industry
- Wind Farm & Turbine.
- Marine, Ports& Offshore
- Film Production & Outdoor Entertainment
- Scaffolding & Temporary Structure
- Rigging & Communications Industry
- Wind Farm & Turbine.
Functions
Instant Wind Speed Alarm
Instant Wind Speed Alarm
WR-3 Plus displays the live wind speed value in selectable measurement units (m/s, knots, MPH, km/hr) Users can set a wind speed warning limit on based on local operation safety standards. An audible and visual alarm will be trigger when the limit has beenreached. Each sensor has a unique wireless address that can connect to several displays to notify multiple stakeholders on-site.
WR-3 Plus displays the live wind speed value in selectable measurement units (m/s, knots, MPH, km/hr) Users can set a wind speed warning limit on based on local operation safety standards. An audible and visual alarm will be trigger when the limit has beenreached. Each sensor has a unique wireless address that can connect to several displays to notify multiple stakeholders on-site.
Data Recording
WR-3 Plus capture and storage wind speed, temperature, air pressure measurements.
64MB built-in memory and outstanding battery life supports up to 1 year of continuous data recording. (based on
10s logging interval, adjustable: 2s, 5s, 10s, 1min, 5 mins, 10 mins, 60 mins)
The recorded data can be easily export in Excel format further analysis.
64MB built-in memory and outstanding battery life supports up to 1 year of continuous data recording. (based on
10s logging interval, adjustable: 2s, 5s, 10s, 1min, 5 mins, 10 mins, 60 mins)
The recorded data can be easily export in Excel format further analysis.

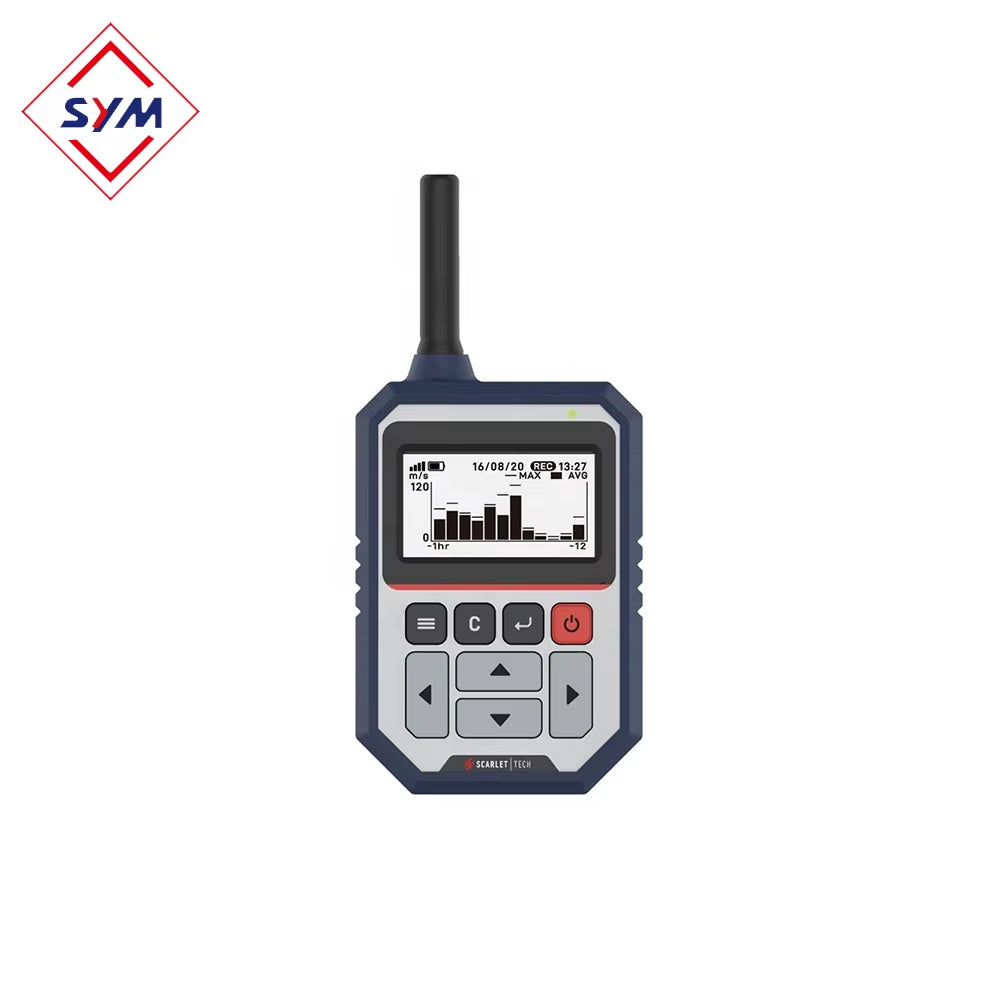

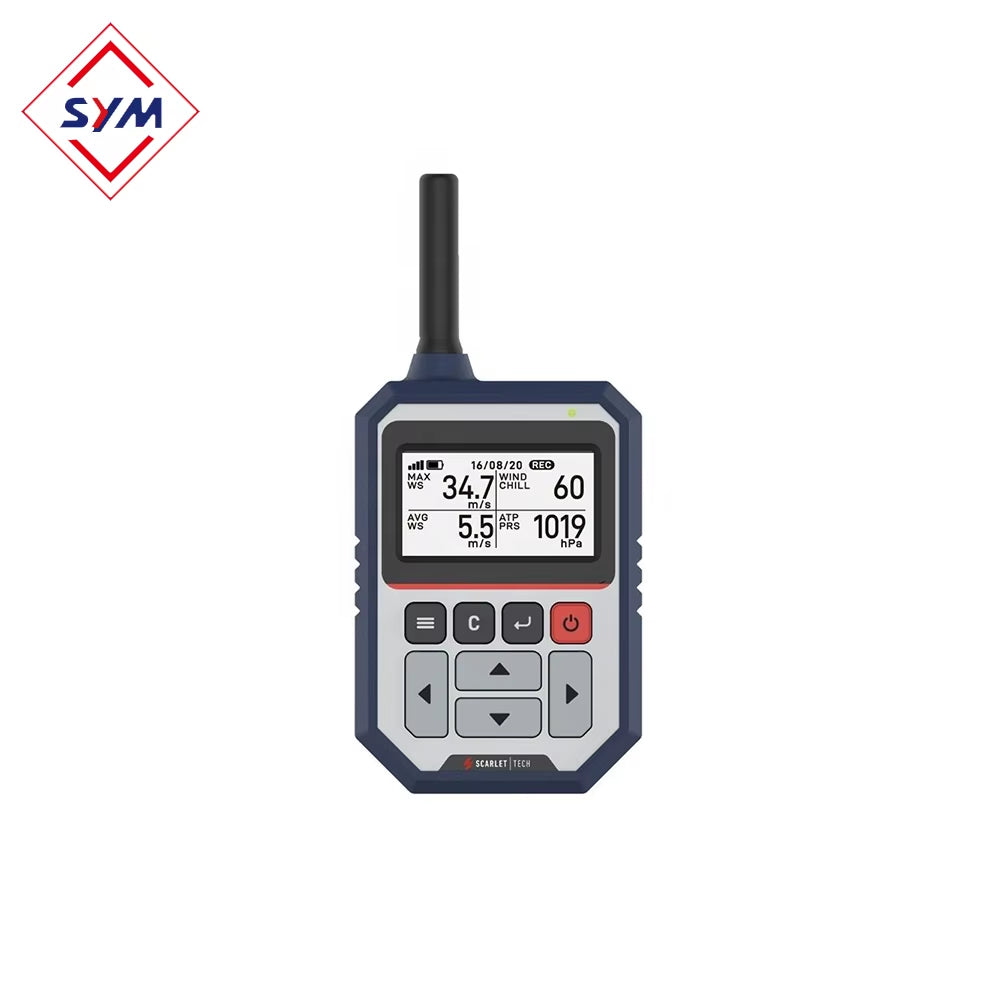

Graphical Display
The large LCD backlit display with user-friendly interface clearly indicates live weather data in various units of
measurement. Users can view hourly wind records and historical bar charts from the past 12 hours on different
pages.
measurement. Users can view hourly wind records and historical bar charts from the past 12 hours on different
pages.
Techincal Specifications
Wireless Sensor | |
Frequency |
868MHz(default), 915MHz |
Distance |
Max 500m* (depends on the applied environment) |
Data Rate |
Every 2 seconds |
Power Supply |
3.6V 18505 Lithium battery x1 |
Waterproof Rating |
IP67 |
Weight |
406g |
Dimension |
262.5 x 183.5 x32mm |
Receiver Datalogger | |
Receiver Buzzer |
> 80dB |
Built-in Memory |
64MB |
Output |
.xlxs, .xls |
Data Logger |
wind speed, temperature, atmospheric pressure |
Logging Interval |
2s, 5s, 10s, 1min, 5 mins, 10 mins, 60 mins |
Power Supply |
1.5V AA battery x3, Micro USB port |
Dimension |
189.6 x 75.6 x 36.3mm |
Weight |
205g |
Wind Speed Sensor | |
Unit |
m/s knots MPH km/hr |
Range |
0.3…50 m/s |
Resolution |
0.1 m/s 0.1 knots 0.1 MPH 0.1 km/hr |
Accuracy |
±2% FS |
Temperature Sensor | |
Unit |
°C °F |
Range |
-30°C…60°C |
Resolution |
0.1°C 0.1°F |
Accuracy |
±1°C |
Atmospheric Pressure Sensor | |
Unit |
hPa mmHg bar |
Range |
500…1100 hPa |
Resolution |
1 hPa 0.1 mmHg 0.001 bar |
Accuracy |
±4 hPa |

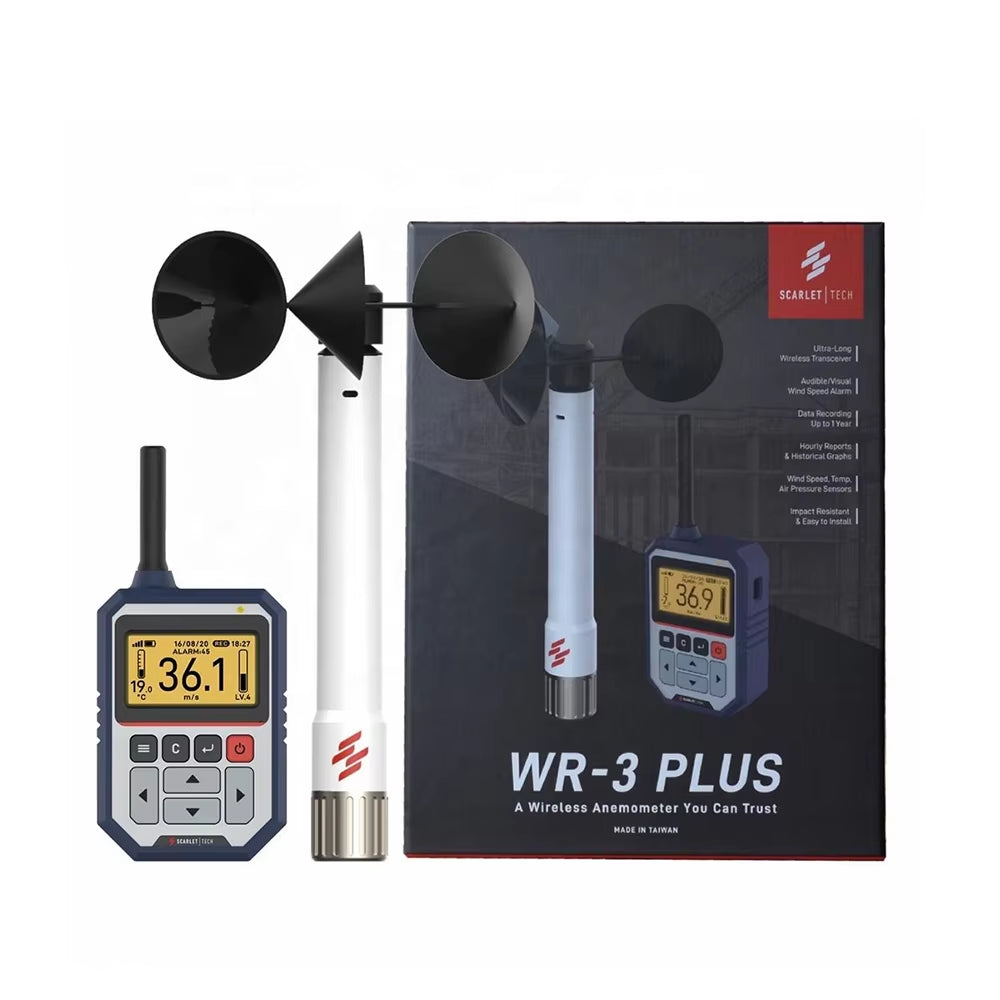

Package List
▪Wireless Sensor
▪Wind Cups
▪Receiver
▪Receiver Antenna
▪Receiver Holder
▪Adhesive Metal Flakes x 3 (for Receiver Holder installation)
▪AA Battery x 3 (for Receiver)
▪3.6V 18505 Lithium Battery x1 (placed in Sensor)
▪User Manual & Certificate
▪Wind Cups
▪Receiver
▪Receiver Antenna
▪Receiver Holder
▪Adhesive Metal Flakes x 3 (for Receiver Holder installation)
▪AA Battery x 3 (for Receiver)
▪3.6V 18505 Lithium Battery x1 (placed in Sensor)
▪User Manual & Certificate
Optional Accessories & Spare Parts
